Products

*Bag Closer Machines*

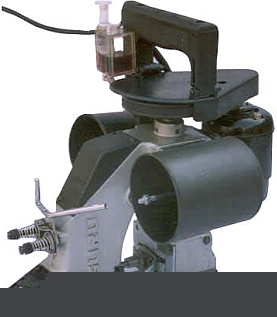

Model D PORTABLE BAG CLOSER MACHINE 1 Needle, 1 Thread, Single Chain stitch sewing machine for closing all kinds of filled bags with agricultural product fertilizer, Flour, Chemicals, Rice, Seeds, Animal Feeds, Cement etc.

Sewing speed	: 5-8 secs. per bag.
Stitch Length	: 7.2 mm (Fixed)
Needle	: DBx257#25
Motor	: 1/10 HPx8000 RPM. 220V.50C/S, AC/DC

Model D 2 PORTABLE BAG CLOSER MACHINE 1 Needle, 1 Thread, Single Chain stitch sewing machine for closing all kinds of filled bags with agricultural product fertilizer, Flour, Chemicals, Rice, Seeds, Animal Feeds, Cement etc.

Sewing speed	: 5-8 secs. per bag.
Stitch Length	: 7.2 mm (Fixed)
Needle	: DBx257#25
Motor	: 1/10 HPx8000 RPM. 220V.50C/S, AC/DC

Model D with Lubrication PORTABLE BAG CLOSER MACHINE 1 Needle, 1 Thread, Single Chain stitch sewing machine for closing all kinds of filled bags with agricultural product fertilizer, Flour, Chemicals, Rice, Seeds, Animal Feeds, Cement etc.

Sewing speed	: 5-8 secs. per bag.
Stitch Length	: 7.2 mm (Fixed)
Needle	: DBx257#25
Motor	: 1/10 HPx8000 RPM. 220V.50C/S, AC/DC

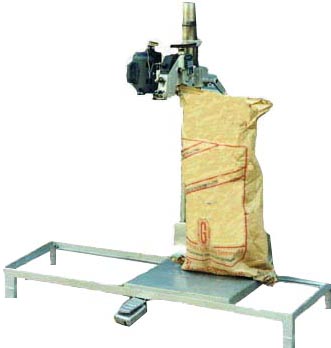

Model GBC2 BAG CLOSING HEAD 1 Needle, 2 Thread, Double Lock chain stitch sewing machine for closing filled bags of jute, cotton, paper, plastic or woven polypropylene tapes. Can be used as a suspended system with top lock balancer or by fixing on the belt conveyor system.

Stitch Length	: Adjustable 6.5 mm to 11 mm.
Speed	: App. 1150 stitches/min.
Presser Foot Lift	: up to 16 mm. max.
Needle	: DR x 2# 24, 25, 26, 28

Filled Bag Closer Machines

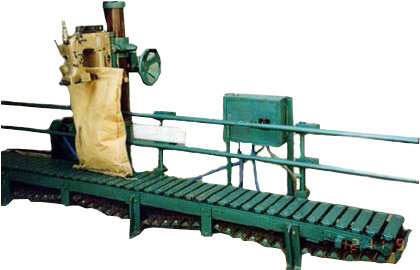

MODEL C-GBC2 HEAVY DUTY BAG CLOSING SYSTEM WITH SLAT/BELT CONVEYOR SYSTEM FOR FILLED BAGS: Perfect, rigid & versatile bag closing system For continuous operation in large and Medium scale industries.

Conveyor Length	3 mtrs. Standard (Can be supplied as per specific requirements)
Sewing Head	Model No. GBC2 (Double Thread), Heavy Duty.
Seam Type	Double Lock Chain Stitch.
Capacity	Upto 900 Bags Per Hour
Sewing Head Height	Adjustable ; to suit different sizes of bags.
Operated by	Double action foot switch
Attachment	Taping Attachment can be provided at extra cost.

MODEL CCS-D CARRIAGE CONVEYOR SYSTEM: Suitable for, "where Economy is more important than Production." This model is perfect for continuous process and performance is like a Heavy Duty Machine.

Capacity	Upto 150 bags per hour
Stitch	Available in Single thread Or Double thread chain Stitch versions.
